This application was developed for Game Playing on the basis of Qualcomm G3 Gen 2 (Code name: Hyperion).
SHAKS will keep on adding and updating applications.
The following UI screenshots may be slightly different from the actual version.
Login & in-app Guidance
It is available to log in with your Google account.
Home
Mapping and Andoird Pre-Setting are available.
Click to go to the already installed game or playable URL.
The Settings of Mapping, Android games, buttons, manuals, and accounts are available in the menu.
Mapping Game
You can see the Mapping Preset and the Recent Play games. Click Presets to download the settings applied to the game.
Mapping game preset
* Hyperion or TV in the upper right corner of the screen.
Add Mapping Data (Standard)
Click the game.
서버에 등록된 매핑 데이터를 추천합니다.
What you see on the screen is the mapping data that many users have created. Touch to accept other users' published mapping data. Most of the first locations are currently the most recommended mapping data published.
* The following ways are recommended:
1.
Most recommended mapping data on the same device.
2.
Mapping data with the most similar screen size.
3.
All mapping data (data with the highest number of recommendations and downloads)
In the case of mapping data in the directory.
원하는 매핑 데이터를 다운로드
if already added mapping data
In the case of mapping data to be created.
Add Mapping Data via Shared Mapping ID
You can use it when you have received the Shared Mapping ID directly.
Please refer to the mapping data sharing method below.
1.
Click on
search icon at the top.
search icon at the top.
2.
Enter the Share ID starting with i.
If you delete the mapping data, it will not be displayed.
Please be aware that it is case sensitive.
3.
Download the data from the search results.
Mapping Data creation and editing
Select a game and click the Play game button.
Be sure to check the game is running properly and open the in-game training (practice) mode screen, or edit the in-game manipulation part, rather than the tutorial (game guide screen).
We recommend editing in an environment where you cannot manipulate the game. If you have to keep moving in real time, capture the screenshot of the game and proceed on top of it.
Allow displaying above other apps.
You need permission to display it above another app. Depending on the course, you may not need it, but if you have added a new game when you receive a permission message, you will need this permission if you want to add it as completely new data.
When you run the game, the SHAKS
logo appears in the corner of the screen.
Touch the SHAKS icon in the corner of the game screen.
Click the SHAKS icon to start editing!
Press the icon to display the edit screen.
The button is positioned by directly manipulating the button on the gamepad, and the button can be positioned by dragging it directly.
•
The available buttons are as follows.
◦
A, B, X, Y, LB, RB, LT, RT, DPAD (DPAD), L3, R3, Start, Select
◦
L stick, R stick
Simplified toolbar
•
Each toolbar on the screen displays a pop-up and allows for detailed settings.
•
The mapping data can be proceeded by pressing icon when saving and button when canceling. Press the Save button to capture the mapping data, save the mapping data file, and send it to the gamepad.
icon when saving and button when canceling. Press the Save button to capture the mapping data, save the mapping data file, and send it to the gamepad.Mapping Data setting
Data A, B, X, and Y can be used by switching buttons.
•
The default screen is used as data A.
•

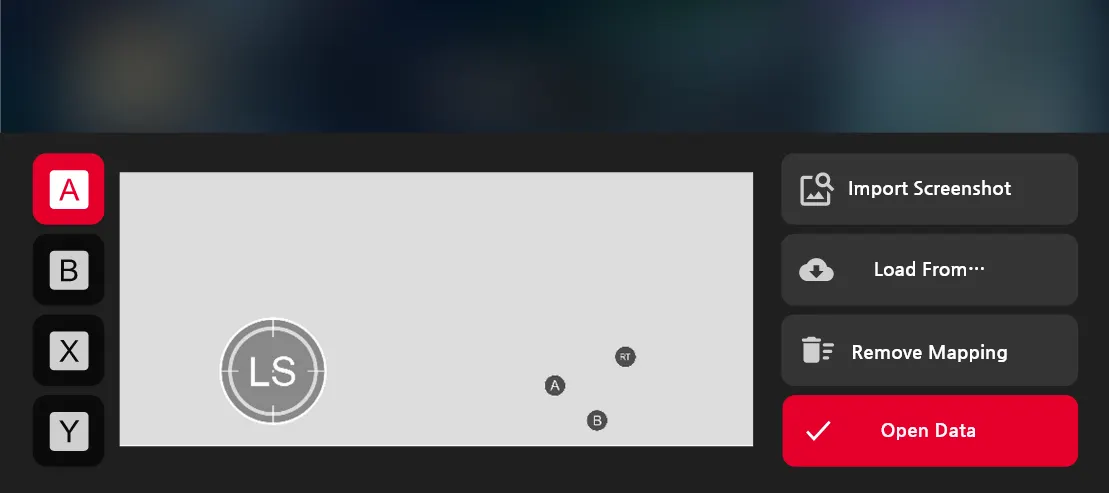

You can edit the data by selecting one of the data A/B/X/Y and clicking Open Data.
•
When you click Load Screenshot, you can select the screenshot through the file app.
•
Click Import Data to import other game app placement information.
•
Click Delete Mapping Data to initialize the mapping data.
Before adding screenshot
After adding screenshot
Adding screenshots allows you to place them regardless of the game screen. In addition, screenshots can be saved separately for each data and rearranged to match the appearance of the image in case the way you operate changes completely.
BUTTON POP UP
You can set the buttons and sticks in detail
•
You can change the coordinate position in detail.
•
You can select button types.
◦
Use button (default) → Press and release button.
◦
Press and hold the joystick action → button with the L/R stick and drag the L/R stick by moving it.
◦
Use as a direction key (DPAD) → DPAD direction buttons as a direction key. Supports 8 directions and operates as a drag.
Function key Setting
With the Setting icon, you can set function keys.
Same as Android, you can save it by game, and you can set two things.
Mapping Data managing
When selecting a mapping data.
When editing of a mapping data
Mapping data that has been downloaded or already edited appears as shown in the picture.
Run Games
Sending the mapping data to the gamepad and running the game right away.
Edit
•
Modify mapping data: you can edit the coordinates to be mapped.
This will give you a button to edit while you are editing the game.
•
Button vibration Settings: You can set the vibration of the gamepad to each button.
•
Function Key: you can change the function keys.
Upload
Uploading mapping data.
Appears when you edit mapping data created by yourself or someone else.
Share
You can share or display the mapping data ID shared online.
Recommend
Recommend mapping data.
Remove from the list
You can remove mapping data completely.
You cannot recover the removed one.
Connect Mapping Game to TV
Even in environments where Hyperion is connected (mirroring) to your TV, you can still use the mapping function. Even if you do not check the status separately, there is no problem with using the mapping function.
Android Game
Check out recent games and Android presets. Click Presets to download the presets for that game.
You can check the function button of the gamepad and the status of the screen mode with the upper right icon.
Android Game Preset
You were uncomfortable with resetting the multi-function key every time you played the game, or changing the layout of the buttons you wanted from game to game. Each individual game can be played immediately with a set value.
Check out our support for compatible and preset-enabled games in the following ways:
1.
Search for compatible games in the app menu Info & guide.
2.
Search by adding the keyword gamepad or controller before/after the game name, and then search for reviews or questions.
3.
Download and run the game directly to see if the controller works under any circumstances.
•
Tutorial sections may not usually work.
•
Occasionally, in-game options must be enabled to work.
•
If you don't show enough movement, you don't support this game.
Android Preset Adding
1. Connect your gamepad to Android mode.
2. Add games by pressing ‘Android Preset’.
Gamepad option change as per gaming style
Game information displays when selecting the added gam. You can change the gameplay features by clicking Edit.
Button Customizing / Vibration / Function Key settings
The gamepad uses the same button placement setting/button vibration setting/multifunction key setting.
if you set it here, it will be saved as the game data when you exit editing and will revert to the original option on the gamepad.
When you run the game, all the information you set is applied as it is and delivered to the gamepad, and the game is executed.
Key & Button Setting
The followings are available in the Button Setting.
1.
Key placement setting (Android mode only. Macro Setting available)
When you want to change the placement of buttons, this feature allows you to change the placement of buttons arbitrarily.
* Macro Settings - You can bundle multiple keys to set behavior with a single key.
For mappings, make changes to each mapping data that you want to use instead of this feature.
2.
Calibration of Stick/Trigger
3.
Function key 1 / Function Key 2 - Click to select and use various functions.
4.
Gamepad test - Various keys and buttons can be tested
Key Customizing & Macro Settings
To change the placement of a button, you can change placement by pressing the button on the gamepad and selecting the button you want.
Even if you've already set it, it's reset to the default when you open it, and it works as it is when you cancel, initialize, or save it.
•
Save → Save as changed key.
•
Initialize → Reverts all keys to their default values. Macros are also deleted.
•
Cancel → Reverts to the previously saved batch.
When using LT, RT after changing the button
1.
When the LT and RT buttons are set to different buttons, or when the other keys are applied to the LT and RT buttons, they all work like normal buttons.
2.
Trigger values operate only the minimum and maximum values, so a trigger entering only the middle value cannot operate.
Macro Setting
Macro is a feature that you can use when you need to perform several actions at once. You can use this feature when you need to perform various actions in a short time.
1.
When operating a pressed button, operate it as a macro instead of a button.
2.
Press the Add Macro button if the first set does not have a list of macros.
3.
Press the red start button under the picture of the gamepad.
4.
Press “Start” to record the input of the gamepad. Record from the time the first button is pressed.
5.
Make sure to press End when all recordings are finished.
6.
You can add Macro info.
7.
Save the Macro setting.
8.
Reset to record Macro again.
9.
Cancel to close the window without saving.
10.
Added Macro Keys are listed down.
11.
Click the macro you want to change to connect to the button and complete the macro setup.
Calibration Stick / Trigger
Stick Calibration
You can use it when the Stick Center value is not Zero (0) or less than the maximum value when the stick is moved.
1.
Calibration starts by pressing a Stick icon (LS, RS, etc.)
2.
With the stick pulled, release your hand to go to the center automatically.
3.
Press Start with your hands off.
It goes to the center when starts.
Wait for the progress bar to complete.
4.
Follow the instructions with the stick and wait for the progress bar to complete.
It is followed in the order of up→ down→ left→right→rotation.
Follow the instruction.
5.
When all actions are complete, click Save to confirm the action after saving.
Trigger (LT/RT or L2/R2) Calibration
You can use it when the Stick Center value is not Zero (0) or less than the maximum value when the stick is moved.
1.
Start trigger calibration (LT/RT).
2.
Slowly release and release the trigger while pulling.
3.
Measure the minimum value. Wait for the progress bar to complete.
4.
Pull the trigger according to the on-screen instructions, and wait for the progress bar to complete.
5.
Save and verify normal operation when all operations are complete.
Function Key 1, 2
Check the Function button status icons.
Function key off
Disable the Function button when pressed.
Turbo (continuous) motion
If you press and hold the button, the same action appears as if you press continuously. Check and select the buttons you want to use frequently, and then press the Save button to specify them.
Press the Function button to apply; press and hold the specified button to activate the turbo (continuous) motion.
Sniper
It is used to control the left/right stick more finely and adjust the sensitivity to the style of play.
With LED #2 on by pressing the Function button, the sniper action is activated and can be checked through the LED.
Stick sensitivity can be set in four levels.
Screen Capture
Available on most Android OS 8.0 and later devices, the shortcut (side button, volume (-) button) allows you to take screenshots on the gamepad.
* Screen capture is an additional feature that is only available in Android mode (no mapping support).
Button & key test
To exit the test, press the ← at the top, or press the back button on the navigation bar.
Various keys and buttons can be tested. If you think there is a problem with the operation of the key during use, you can check it here.
•
If there is no change when all buttons, sticks, and triggers are pressed on the screen, and the message "Unknown input device has been identified," it may be a situation where input functionality is obstructed through an accessible app such as an automatic click app or smartphone remote control.
If both buttons and sticks on the gamepad do not work:
1.
Please check the settings → accessibility → (installed) service item on your smartphone.
2.
Turn off all services that are working, such as automatic click apps or apps that provide remote control, and button functionality in installed services.
3.
Turn off the gamepad and turn it on again to try it, or reboot your smartphone and try it again.
You can check the action by connecting the gamepad by wire.
1.
Connect the gamepad to the Android device by referring to the wired connection method of the gamepad.
2.
Turn off the Bluetooth function for a moment or remove all Sharks gamepads.
3.
Press Settings → Key/Button Test Menu and operate the gamepad.
Info & Guide
This is information to make more use of Sharks products. You can check the manual and compatible game information.
•
To be updated arbitrarily
•
It should be available to access an Internet browser.
Account Setting
Edit Nickname
You can reset your nickname. When you change an alias, you must specify it as a new nickname that does not overlap with the existing name.
Logout
If you don't want to continue using the account you're currently logged in to, or if you want to log in using a different Google account, you can log out. If you log out, you must log in again to use the app again. You can log in using a different Google account.
Allow marketing info.
Choose whether to receive news from SHAKS Game Hub.
•
To receive email marketing receipts.
•
To receive marketing via text message.
Personal information policy
Terms of Service
Application Setting
Application Version
Application name and version.
Application Review
Leave your review & comments.
Visit SHAKS Website
To visit SHAKS website.
SNS
To visit SHAKS official social medias.
Alarm Setting
To set alarm messages for the Application.
APP Setting
You can manage many things that need to be managed directly by the system, such as Bluetooth settings or display settings above other apps.
Initialize App
Initialize various information sets within the app.
* This is to inform you about the data being deleted. Please make sure to check and delete it when you need it.
1.
Initialize app settings: Delete pop-up information messages and records related to recently used information among what the app remembers.
2.
Open in Settings → Storage → Delete Cache Data: Delete only various image picture data and temporary files in the app.
3.
Open in Settings → Storage → (All) Data Delete: Initialize all app usage records corresponding to app reinstallation. Mapping preset data, Android preset information, and macro information are all deleted.
